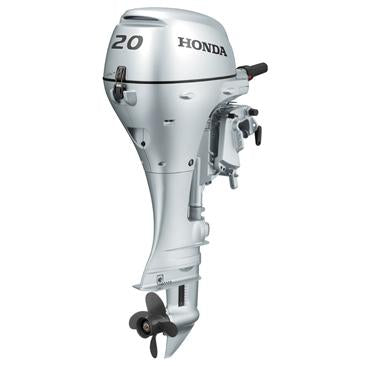

                Load image into Gallery viewer, BF20 (20HP OUTBOARD)
On Sale

SKU: BF20

BF20 (20HP OUTBOARD)

The BF20 delivers unrivalled innovation to the portable range. It’s a powerful, efficient and clean operator!

ENGINE
TYPE 4-stroke SOHC 2-cylinders / 4-valves
DISPLACEMENT 350cc
BORE & STROKE 59 x 64 mm
FULL THROTTLE RPM RANGE 5,000-6,000 RPM
RATED POWER 20HP @ 5,500 RPM
COOLING SYSTEM Water Cooled
INDUCTION 1 carburetor
IGNITION SYSTEM PGM-IG
STARTING SYSTEM Recoil/Electric
EXHAUST Through prop
ALTERNATOR 12-Amp (electric) / 6-Amp (manual)
POWER TRIM & TILT Power tilt
GAS-ASSISTED TILT Available
TRIM RANGE 4-stage 8° - 12° - 16° - 20°
TILT RANGE 72°
SAFETY FEATURES
EMERGENCY STOP SWITCH Standard
OIL PRESSURE ALERT Standard
TEMPERATURE ALERT Standard
REV-LIMITER Standard
SPEEDOMETER PICKUP n/a
DRIVE
GEAR RATIO 2.08:1
GEAR SHIFT F-N-R
PROPELLER 4-blade aluminium
DIAMETER X PITCH (S-TYPE) 9-1/4 x 10 inches
DIAMETER X PITCH (L-TYPE) 9-1/4 x 10 inches
DIAMETER X PITCH (X-TYPE) 9-1/4 x 10 inches
DIMENSIONS
OVERALL LENGTH 650mm
OVERALL WIDTH 350mm
OVERALL HEIGHT (S-TYPE) 1,110mm
OVERALL HEIGHT (L-TYPE) 1,240mm
OVERALL HEIGHT (X-TYPE) 1,380mm
TRANSOM HEIGHT (S-TYPE) 433mm
TRANSOM HEIGHT (L-TYPE) 563mm
TRANSOM HEIGHT (X-TYPE) 703mm
DRY WEIGHTS (S-TYPE) 46.5kg
DRY WEIGHTS (L-TYPE) 49.5kg
DRY WEIGHTS (X-TYPE) 61.0kg
