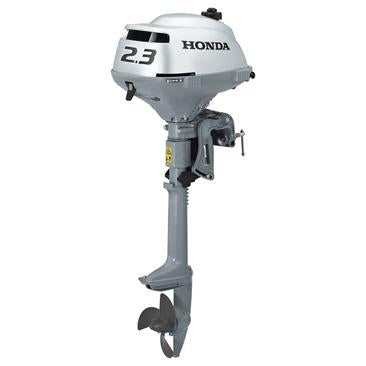

BF2.3 (2.3HP OUTBOARD)

Reliable and quiet, the ergonomic carry handle of the lightweight BF2.3 allows the Honda experience to be enjoyed anywhere, anytime!

ENGINE
TYPE 4-stroke OHV 1-cylinder / 2-valves
DISPLACEMENT 57cc
BORE & STROKE 45 x 36 mm
FULL THROTTLE RPM RANGE 5,000-6,000 RPM
RATED POWER 2.3HP @ 5,500 RPM
COOLING SYSTEM Forced air
INDUCTION 1 carburettor
IGNITION SYSTEM Transistorised Pointless
STARTING SYSTEM Recoil
EXHAUST Under water, above propeller
ALTERNATOR n/a
POWER TRIM & TILT n/a
GAS-ASSISTED TILT n/a
TRIM RANGE 4-stage 5 ° - 10 ° - 15 ° - 20 °
TILT RANGE 75°
SAFETY FEATURES
EMERGENCY STOP SWITCH Standard
OIL PRESSURE ALERT n/a
TEMPERATURE ALERT n/a
REV-LIMITER n/a
SPEEDOMETER PICKUP n/a
DRIVE
GEAR RATIO 2.42:1
GEAR SHIFT 360° pivot
PROPELLER 3-blade plastic
DIAMETER X PITCH (S-TYPE) 7-1/4 x 4-3/4 inches
DIAMETER X PITCH (L-TYPE) 7-1/4 x 4-3/4 inches
DIAMETER X PITCH (X-TYPE) n/a
DIMENSIONS
OVERALL LENGTH 410mm
OVERALL WIDTH 280mm
OVERALL HEIGHT (S-TYPE) 945mm
OVERALL HEIGHT (L-TYPE) 1,100mm
OVERALL HEIGHT (X-TYPE) n/a
TRANSOM HEIGHT (S-TYPE) 418mm
TRANSOM HEIGHT (L-TYPE) 571mm
TRANSOM HEIGHT (X-TYPE) n/a
DRY WEIGHTS (S-TYPE) 12.2kg
DRY WEIGHTS (L-TYPE) 12.7kg
DRY WEIGHTS (X-TYPE) n/a
