SKU: BF10

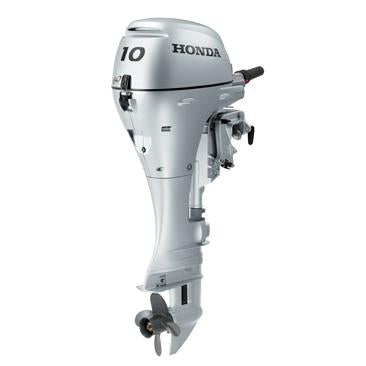

BF10 (10HP OUTBOARD)

Delivering dependable portable performance, the BF10 is ideal for inflatable boats, small aluminium dinghies and sailing boats.

ENGINE
TYPE 4-stroke OHC 2-cylinders / 4-valves
DISPLACEMENT 222cc
BORE & STROKE 58 x 42 mm
FULL THROTTLE RPM RANGE 5,000-6,000 RPM
RATED POWER 10HP @ 5,500 RPM
COOLING SYSTEM Water cooled
INDUCTION 1 carburettor
IGNITION SYSTEM PGM-IG
STARTING SYSTEM Recoil/Electric
EXHAUST Through prop
ALTERNATOR 12-Amp (electric) / 6-Amp (manual)
POWER TRIM & TILT n/a
GAS-ASSISTED TILT n/a
TRIM RANGE 5-stage 4° - 8° - 12° - 16° - 20°
TILT RANGE 72°
SAFETY FEATURES
EMERGENCY STOP SWITCH Standard
OIL PRESSURE ALERT Standard
TEMPERATURE ALERT Standard
REV-LIMITER Standard
SPEEDOMETER PICKUP n/a
DRIVE
GEAR RATIO 2.33:1
GEAR SHIFT F-N-R
PROPELLER 4-blade aluminium
DIAMETER X PITCH (S-TYPE) 9-1/4 x 8 inches
DIAMETER X PITCH (L-TYPE) 9-1/4 x 8 inches
DIAMETER X PITCH (X-TYPE) 9-1/4 x 8 inches
DIMENSIONS
OVERALL LENGTH 610mm
OVERALL WIDTH 345mm
OVERALL HEIGHT (S-TYPE) 1107mm
OVERALL HEIGHT (L-TYPE) 1237mm
OVERALL HEIGHT (X-TYPE) n/a
TRANSOM HEIGHT (S-TYPE) 433mm
TRANSOM HEIGHT (L-TYPE) 563mm
TRANSOM HEIGHT (X-TYPE) n/a
DRY WEIGHTS (S-TYPE) 42kg
DRY WEIGHTS (L-TYPE) 44kg
DRY WEIGHTS (X-TYPE) 42kg
